04A Series Circuit Board Supports - Flat Board Side x .187 Chassis Hole

Name: 04A Series Circuit Board Supports - Flat Board Side x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-098394
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-098394

Easy-to-install 04A Series Circuit Board Supports for densely loaded PC boards, RoHS compliant, ideal for chassis with 1-1.9 inches thickness.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

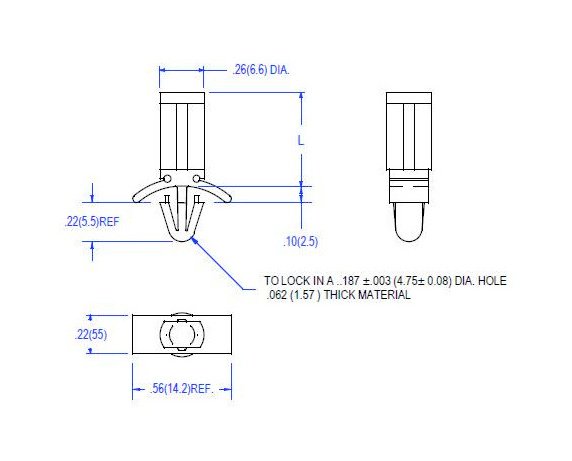

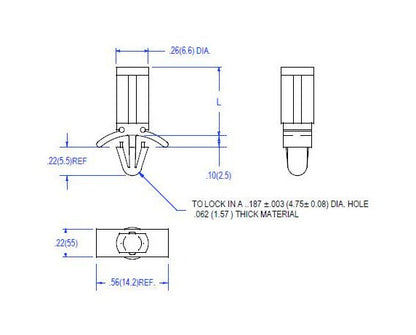

The 04A Series Circuit Board Supports feature easy installation without the need for tools or screws, making them ideal for densely loaded PC boards. With a panel range of 040-.078 inches, these supports are designed to securely mount on chassis with a thickness of 1-1.9 inches. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports are RoHS compliant and meet ASTM D 4066, PA111 standards. Operating within a temperature range of -40 to 185F (-40 to 85C), these supports offer durability and reliability for a wide range of applications.

Product Specifications

Specifications Chassis Thickness

040-.078 (1-1.9) inches (mm)

Specifications Color

Natural

Specifications Dim L

.375 (9.5) inches (mm)

Specifications Mounting Hole Diameter

.187 (4.8) inches (mm)
