04A Series Circuit Board Supports - Flat Board Side x .187 Chassis Hole
04A Series Circuit Board Supports - Flat Board Side x .187 Chassis Hole
SKU:01C-fe641c
Effortlessly install dense PC boards with the 04A Series Circuit Board Supports. Nylon 66 construction, RoHS compliant, ASTM certified.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
04A Series Circuit Board Supports - Flat Board Side x .187 Chassis Hole
$19.99
Quantity: 1
Claim Your Seller Account
04A Series Circuit Board Supports - Flat Board Side x .187 Chassis Hole
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 04A Series Circuit Board Supports offer a hassle-free installation process without the need for tools or screws, perfect for securely mounting densely loaded PC boards. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports meet ASTM D4066 and PA111 standards, ensuring reliability. With a temperature range of -40 to 185F (-40 to 85C), and RoHS compliance, these supports are ideal for various applications requiring stability and durability.
Ready to Grow Without Cash Flow Constraints?

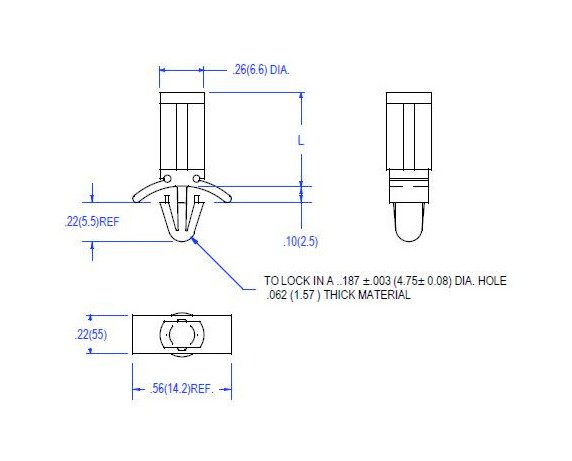

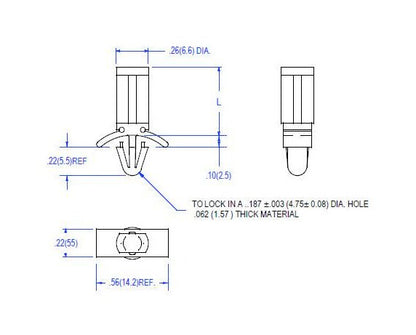

Product Specifications
Specifications Chassis Thickness
040-.078 (1-1.9) inches (mm)
Specifications Color
Natural
Specifications Dim L
1.25 (31.8) inches (mm)
Specifications Mounting Hole Diameter
.187 (4.8) inches (mm)
