04A Series Flat Board Side Mount with .187 Chassis Hole
04A Series Flat Board Side Mount with .187 Chassis Hole
SKU:01C-a4e540
Effortlessly support PC boards with the 04A Series Flat Board Side Mount for secure and reliable installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
04A Series Flat Board Side Mount with .187 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
04A Series Flat Board Side Mount with .187 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

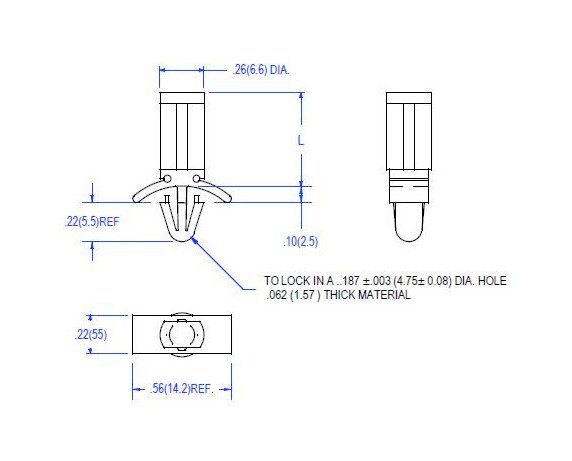

The 04A Series Flat Board Side Mount with .187 Chassis Hole offers hassle-free installation without the need for tools or screws, making it ideal for securely supporting densely loaded PC boards. Constructed from Nylon 66 UL94V-2 material, this circuit board support ensures durability and reliability. With a panel range of 040-.078 and a temperature range of -40 to 185°F (-40 to 85°C), this product meets ASTM D 4066 and PA111 standards, while being RoHS compliant. The mounting hole diameter of .187 (4.8mm) and natural color make it versatile for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Chassis Thickness
040-.078 (1-1.9) inches (mm)
Specifications Color
Natural
Specifications Dim L
.750 (19.1) inches (mm)
Specifications Mounting Hole Diameter
.187 (4.8) inches (mm)
