04A Series Nylon Circuit Board Supports with .187" Chassis Hole

Name: 04A Series Nylon Circuit Board Supports with .187" Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-f5b757
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-f5b757

Upgrade circuit board support with 04A Series: Flat Board Side x .187 Chassis Hole for easy installation and reliable panel support on densely loaded PC boards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your circuit board support system with the 04A Series Flat Board Side x .187 Chassis Hole. This innovative solution requires no tools or screws for installation, ensuring quick and hassle-free setup on densely loaded PC boards. Crafted from Nylon 66 UL94V-2 material (UL94V-0 available), these supports offer excellent durability and heat resistance with a temperature range of -40 to 185F (-40 to 85C). Designed to meet ASTM D 4066, PA111 standards, they provide reliable panel support and secure mounting with a panel range of 040-.078 inches. Enhance your procurement process with these RoHS-compliant, industry-certified circuit board supports.

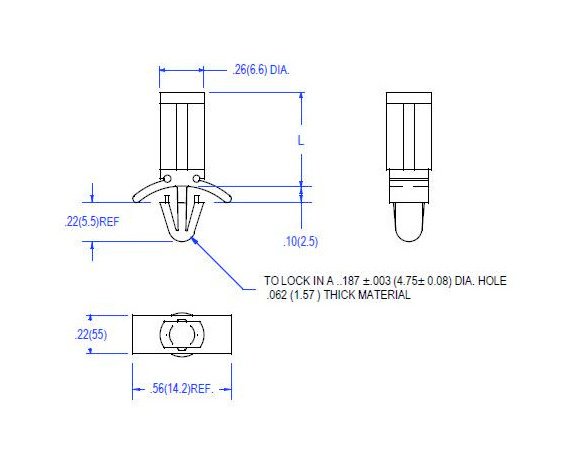

Product Specifications

Specifications Chassis Thickness

040-.078 (1-1.9) inches (mm)

Specifications Color

Natural

Specifications Dim L

.250 (6.4) inches (mm)

Specifications Mounting Hole Diameter

.187 (4.8) inches (mm)

04A Series Nylon Circuit Board Supports with .187" Chassis Hole
