05 Series: .156 Board Hole x .156 Chassis Hole Circuit Board Supports

Name: 05 Series: .156 Board Hole x .156 Chassis Hole Circuit Board Supports
Brand: All Electronics Hardware
SKU: 01C-adb637
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-adb637

Effortlessly assemble circuits with 05 Series: .156 Board Hole x .156 Chassis Hole supports. Pack of 500, Nylon 66 UL94V-2, RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

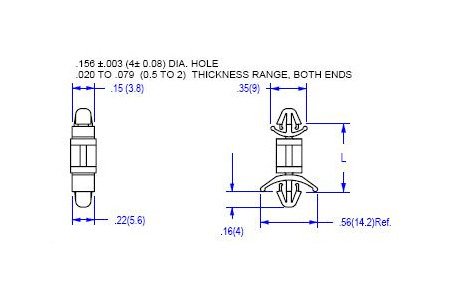

The 05 Series: .156 Board Hole x .156 Chassis Hole Circuit Board Supports are designed for easy manual installation, reducing assembly time significantly. Each pack contains 500 supports made of Nylon 66 UL94V-2 material (UL94V-0 available upon request), ensuring durability and safety. With a temperature range of -40 to 185F (-40 to 85C), these supports provide reliable performance in varied environments. The supports feature a .350-inch length, suitable for board thicknesses of .063 inches and chassis thicknesses ranging from .020 to .079 inches. Compliant with RoHS standards, these supports meet stringent quality and environmental regulations for peace of mind in your installations.

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.020 - .079 (0.5 - 2.0) inches (mm)

Specifications Color

White

Specifications Dim L

.350 (8.9) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0

05 Series: .156 Board Hole x .156 Chassis Hole Circuit Board Supports
