05 Series Board and Chassis Hole Circuit Board Supports

Name: 05 Series Board and Chassis Hole Circuit Board Supports
Brand: All Electronics Hardware
SKU: 01C-3f192f
Price: 14.99 USD
Availability: OutOfStock

SKU:01C-3f192f

Effortlessly install our 05 Series Circuit Board Supports for secure mounting. RoHS compliant with durable Nylon 66 material.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

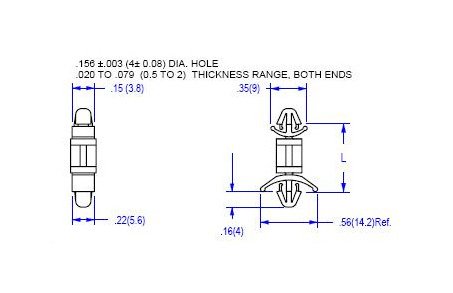

The 05 Series Circuit Board Supports are designed for easy hand installation, reducing assembly time significantly. Each support features a .156 board hole and .156 chassis hole, crafted from durable Nylon 66 material meeting UL94V-2 standards (UL94V-0 available). These supports are RoHS compliant, ASTM D 4066 tested, and have a temperature range of -40 to 185F. With precise dimensions and a white color finish, these supports ensure secure and stable mounting for circuit boards with a thickness of .063 inches and chassis thickness ranging from .020 to .079 inches.

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.020 - .079 (0.5 - 2.0) inches (mm)

Specifications Color

White

Specifications Dim L

.402 (10.2) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0

05 Series Board and Chassis Hole Circuit Board Supports
