05 Series Circuit Board Support: .156 Board Hole x .156 Chassis Hole, UL94V-2

Name: 05 Series Circuit Board Support: .156 Board Hole x .156 Chassis Hole, UL94V-2
Brand: All Electronics Hardware
SKU: 01C-455a01
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-455a01

05 Series Circuit Board Support: Easy installation, durable Nylon 66 UL94V-2 material, and wide temperature range for versatile applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 05 Series Circuit Board Support is a reliable solution designed for easy manual installation, significantly reducing assembly time. Each support is constructed from Nylon 66 UL94V-2 material, ensuring durability and safety. With a temperature range of -40 to 185F (-40 to 85C), this product offers versatility and performance. Suitable for diverse applications, this support guarantees secure mounting between the circuit board and chassis. Enhance your assembly processes with the 05 Series Circuit Board Support.

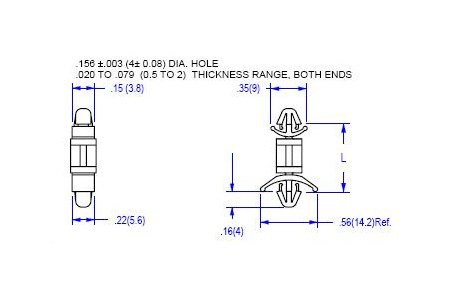

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.020 - .079 (0.5 - 2.0) inches (mm)

Specifications Color

Natural

Specifications Dim L

.528 (13.4) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

05 Series Circuit Board Support: .156 Board Hole x .156 Chassis Hole, UL94V-2
