05 Series Circuit Board Supports
05 Series Circuit Board Supports
SKU:01C-8483ee
Install with ease and save time with 05 Series Circuit Board Supports, made of Nylon 66 UL94V-2 material. RoHS compliant, ASTM D 4066 tested.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
05 Series Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
05 Series Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

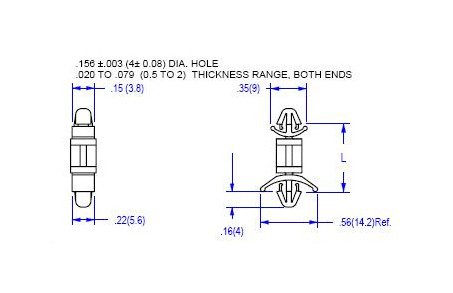

The 05 Series Circuit Board Supports are designed for easy manual installation, reducing assembly time significantly. Each pack contains 500 supports, made of Nylon 66 UL94V-2 material (UL94V-0 available upon request). These supports have a temperature range of -40 to 185F (-40 to 85C), offering durability and reliability in various environments. With dimensions of .902 inches in length, suitable for board thickness of .063 inches and chassis thickness ranging from .020 to .079 inches, these supports provide secure mounting solutions for circuit boards. ASTM D 4066 and RoHS compliant, ensuring safety and quality.
Product Specifications
Specifications Board Thickness
.063 (1.6) inches (mm)
Specifications Chassis Thickness
.020 - .079 (0.5 - 2.0) inches (mm)
Specifications Color
White
Specifications Dim L
.902 (22.9) inches (mm)
Specifications Fig No
1
Specifications Material Code
UL94V-0
