05 Series Circuit Board Supports .156 Board Hole x .156 Chassis Hole

Name: 05 Series Circuit Board Supports .156 Board Hole x .156 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-a05ba1
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-a05ba1

Easy-to-install 05 Series Circuit Board Supports reducing assembly time, pack of 500, durable Nylon 66 UL94V-2 material, RoHS compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 05 Series Circuit Board Supports with .156 Board Hole x .156 Chassis Hole are designed for easy hand installation, reducing assembly time. Each pack contains 500 supports made of Nylon 66 UL94V-2 material (UL94V-0 available with 'X' in part#) for durability. These supports meet ASTM D 4066 and RoHS standards and have a temperature range of -40 to 185F (-40 to 85C), providing reliable performance in various conditions.

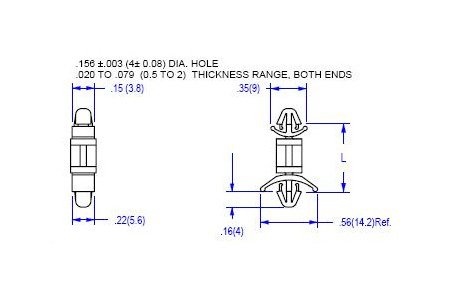

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.020 - .079 (0.5 - 2.0) inches (mm)

Specifications Color

Natural

Specifications Dim L

.402 (10.2) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

05 Series Circuit Board Supports .156 Board Hole x .156 Chassis Hole
