05 Series Circuit Board Supports: .156" Board Hole x .156" Chassis Hole

Name: 05 Series Circuit Board Supports: .156" Board Hole x .156" Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-62c031
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-62c031

Effortlessly install 05 Series circuit board supports for efficient assembly. RoHS compliant and durable for various temperature ranges.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

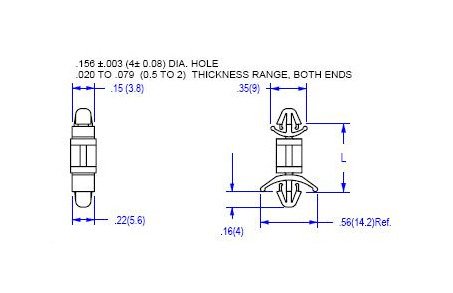

The 05 Series Circuit Board Supports with .156" Board Hole x .156" Chassis Hole offer a time-saving solution for easy installation by hand, reducing assembly time significantly. Manufactured from Nylon 66 UL94V-2 material (UL94V-0 available), these supports are RoHS compliant and can withstand temperatures ranging from -40 to 185F. With dimensions of .650" (16.5mm) in length, compatible with .063" (1.6mm) board thickness and .020 - .079" (0.5 - 2.0mm) chassis thickness, these supports deliver reliable performance and stability, meeting the highest quality standards.

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.020 - .079 (0.5 - 2.0) inches (mm)

Specifications Color

White

Specifications Dim L

.650 (16.5) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0

05 Series Circuit Board Supports: .156" Board Hole x .156" Chassis Hole
