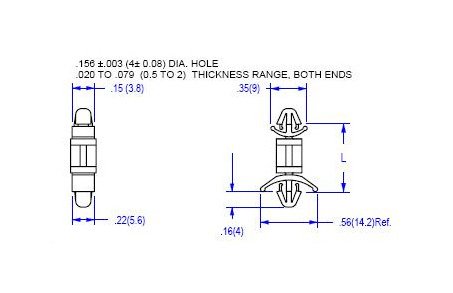

05 Series Circuit Board Supports: .156 Board Hole x .156 Chassis Hole

Name: 05 Series Circuit Board Supports: .156 Board Hole x .156 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-777283
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-777283

Easy-to-install 05 Series Circuit Board Supports with .156 Board Hole x .156 Chassis Hole, pack of 500. UL94V-2 Nylon 66, RoHS compliant, -40 to 185F temp range.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 05 Series Circuit Board Supports with .156 Board Hole x .156 Chassis Hole are designed for easy hand installation, reducing assembly time significantly. Each pack includes 500 durable supports made of UL94V-2 Nylon 66 material (UL94V-0 available with 'X' at the end of the part number). These supports comply with UL File No. E53664, ASTM D 4066, and RoHS standards, ensuring reliability and safety in various environments. With a temperature range of -40 to 185F (-40 to 85C), these board supports offer exceptional performance and longevity.

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.020 - .079 (0.5 - 2.0) inches (mm)

Specifications Color

White

Specifications Dim L

1.02 (26.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0

05 Series Circuit Board Supports: .156 Board Hole x .156 Chassis Hole
