05 Series Circuit Board Supports: .156 Board Hole x .156 Chassis Hole - Nylon 66 UL94V-0

Name: 05 Series Circuit Board Supports: .156 Board Hole x .156 Chassis Hole - Nylon 66 UL94V-0
Brand: All Electronics Hardware
SKU: 01C-0c8263
Price: 25.99 USD
Availability: OutOfStock

SKU:01C-0c8263

Effortlessly install 05 Series Circuit Board Supports with .156 Board Hole x .156 Chassis Hole. Nylon 66 UL94V-0 material, RoHS compliant, ASTM D 4066 standard, UL File No. E53664 certified. Temperature range: -40 to 185F.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

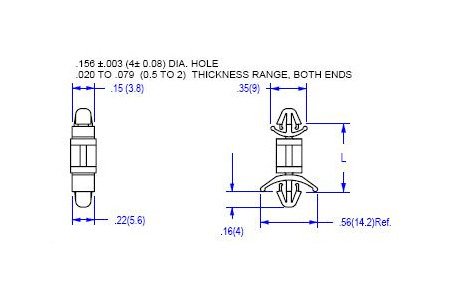

The 05 Series Circuit Board Supports with .156 Board Hole x .156 Chassis Hole offer effortless manual installation, streamlining assembly processes. Crafted from Nylon 66 UL94V-0 material (UL94V-2 available), these supports ensure reliable performance in diverse environments with a temperature range of -40 to 185F (-40 to 85C). With dimensions of .778 inches in length, compatible with board thickness of .063 inches and chassis thickness ranging from .020 to .079 inches, these supports conform to ASTM D 4066 standards. RoHS compliant and UL File No. E53664 certified, they guarantee quality and safety in every application.

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.020 - .079 (0.5 - 2.0) inches (mm)

Specifications Color

White

Specifications Dim L

.778 (19.7) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0

05 Series Circuit Board Supports: .156 Board Hole x .156 Chassis Hole - Nylon 66 UL94V-0
