05 Series Nylon Circuit Board Supports
05 Series Nylon Circuit Board Supports
SKU:01C-9a5078
Install these sturdy Nylon Circuit Board Supports effortlessly. UL-listed, ASTM compliant, and RoHS certified for quality assurance.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
05 Series Nylon Circuit Board Supports
$15.99
Quantity: 1
Claim Your Seller Account
05 Series Nylon Circuit Board Supports
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

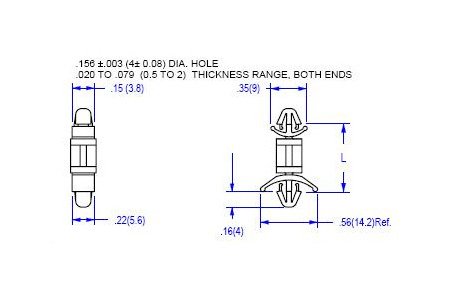

The 05 Series: .156 Board Hole x .156 Chassis Hole Circuit Board Supports offer easy manual installation, reducing assembly time for efficient operations. Each pack contains 500 supports made of Nylon 66 UL94V-2 material (UL94V-0 available upon request). These supports have been rigorously tested and are UL-listed under File No. E53664, meeting ASTM D 4066 and RoHS compliance standards. With a temperature range of -40 to 185F (-40 to 85C), these supports provide reliable performance in various environments.
Product Specifications
Specifications Board Thickness
.063 (1.6) inches (mm)
Specifications Chassis Thickness
.020 - .079 (0.5 - 2.0) inches (mm)
Specifications Color
White
Specifications Dim L
.528 (13.4) inches (mm)
Specifications Fig No
1
Specifications Material Code
UL94V-0
