05 Series Nylon Circuit Board Supports - .156 Board Hole x .156 Chassis Hole

Name: 05 Series Nylon Circuit Board Supports - .156 Board Hole x .156 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-5bbd3c
Price: 25.99 USD
Availability: OutOfStock

SKU:01C-5bbd3c

Effortlessly install 05 Series Nylon Circuit Board Supports for efficient assembly. RoHS compliant with durable Nylon 66 UL94V-2 material.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 05 Series Nylon Circuit Board Supports with .156 Board Hole x .156 Chassis Hole are designed for easy manual installation, reducing assembly time. Made of Nylon 66 UL94V-2 material with the option for UL94V-0, these supports ensure reliability and durability. With a RoHS compliant design and operating temperature range of -40 to 185F (-40 to 85C), they meet high industry standards for safety and performance. Each package contains 500 supports, providing ample quantity for various applications.

Product Specifications

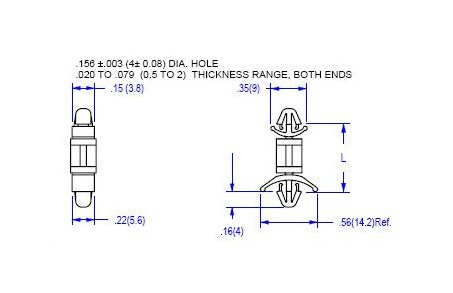

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.020 - .079 (0.5 - 2.0) inches (mm)

Specifications Color

Natural

Specifications Dim L

1.02 (26.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

05 Series Nylon Circuit Board Supports - .156 Board Hole x .156 Chassis Hole
