05 Series Nylon Circuit Board Supports
05 Series Nylon Circuit Board Supports
SKU:01C-f712cd
Effortlessly install and stabilize your circuit boards with 05 Series Nylon Supports. RoHS compliant and temperature-resistant. Dimensions: .350" L, .063" Board Thickness.
Regular price
$27.99
Regular price
Sale price
$27.99
Unit price
per
Initiate Order
05 Series Nylon Circuit Board Supports
$27.99
Quantity: 1
Claim Your Seller Account
05 Series Nylon Circuit Board Supports
$27.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

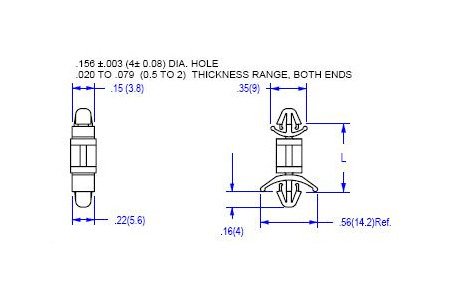

The 05 Series Circuit Board Supports with .156 Board Hole x .156 Chassis Hole offer effortless hand installation, reducing assembly time significantly. Made of Nylon 66 UL94V-2 material, these supports come RoHS compliant and can withstand temperatures ranging from -40 to 185F (-40 to 85C). With dimensions of .350 inches in length, .063 inches board thickness, and .020 - .079 inches chassis thickness, these supports provide reliable stability for your circuit boards.
Product Specifications
Specifications Board Thickness
.063 (1.6) inches (mm)
Specifications Chassis Thickness
.020 - .079 (0.5 - 2.0) inches (mm)
Specifications Color
Natural
Specifications Dim L
.350 (8.9) inches (mm)
Specifications Fig No
2
Specifications Material Code
UL94V-2
