05 Series Nylon Circuit Board Supports - UL94V-0 Compliant
05 Series Nylon Circuit Board Supports - UL94V-0 Compliant
SKU:01C-e78246
Enhance your assembly process with easy-to-install 05 Series Nylon Circuit Board Supports. UL94V-0 compliant, RoHS certified, and ASTM D 4066 tested.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
05 Series Nylon Circuit Board Supports - UL94V-0 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
05 Series Nylon Circuit Board Supports - UL94V-0 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

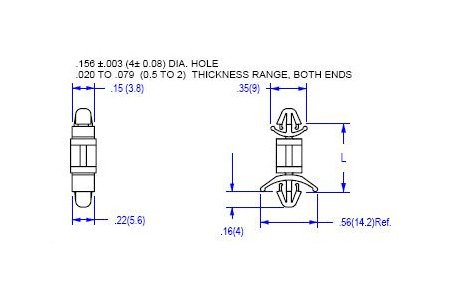

The 05 Series Nylon Circuit Board Supports with a .156 Board Hole x .156 Chassis Hole are designed for easy manual installation, reducing assembly time significantly. This pack of 500 supports is crafted from Nylon 66 material, meeting UL94V-2 standards (UL94V-0 available upon request). With UL File No. E53664 and ASTM D 4066 compliance, these supports are RoHS compliant and can withstand temperatures ranging from -40 to 185F (-40 to 85C). Enhance your circuit board applications with these durable, high-quality supports that ensure secure installations and reliable performance.
Product Specifications
Specifications Board Thickness
.063 (1.6) inches (mm)
Specifications Chassis Thickness
.020 - .079 (0.5 - 2.0) inches (mm)
Specifications Color
White
Specifications Dim L
.591 (15.0) inches (mm)
Specifications Fig No
1
Specifications Material Code
UL94V-0
