05A Series Circuit Board Support for .031 to .078 Thick Chassis
05A Series Circuit Board Support for .031 to .078 Thick Chassis
SKU:01C-ab5205
Versatile circuit board support for .031-.078 thick chassis, UL certified, RoHS compliant, -40 to 185F temp range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
05A Series Circuit Board Support for .031 to .078 Thick Chassis
$29.99
Quantity: 1
Claim Your Seller Account
05A Series Circuit Board Support for .031 to .078 Thick Chassis
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 05A Series Circuit Board Support is designed for versatile use with .031 to .078 thick chassis, providing reliable support for circuit boards. Made of Nylon 66 UL94V-2 material (UL94V-0 available on request), this support is UL certified with File No. E41938 and meets ASTM D 4066, PA111 standards. RoHS compliant and offering a temperature range of -40 to 185F (-40 to 85C), this product ensures durability and performance in various environments.

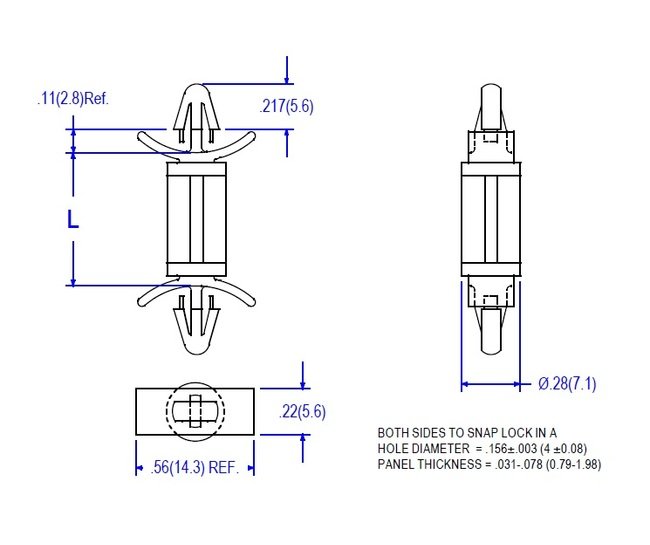

Product Specifications
Specifications Dim L
.375 (9.5) inches (mm)
