05A Series Circuit Board Supports: .156 Board Hole x .156 Chassis Hole
05A Series Circuit Board Supports: .156 Board Hole x .156 Chassis Hole
SKU:01C-cd0c43

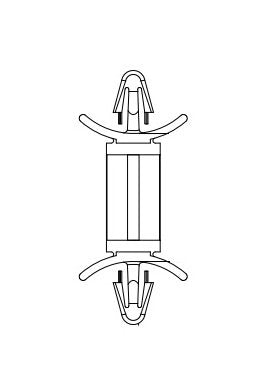

05A Series Circuit Board Supports: Sturdy board supports for maximum PCB security. RoHS compliant with wide temperature range.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
05A Series Circuit Board Supports: .156 Board Hole x .156 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
05A Series Circuit Board Supports: .156 Board Hole x .156 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

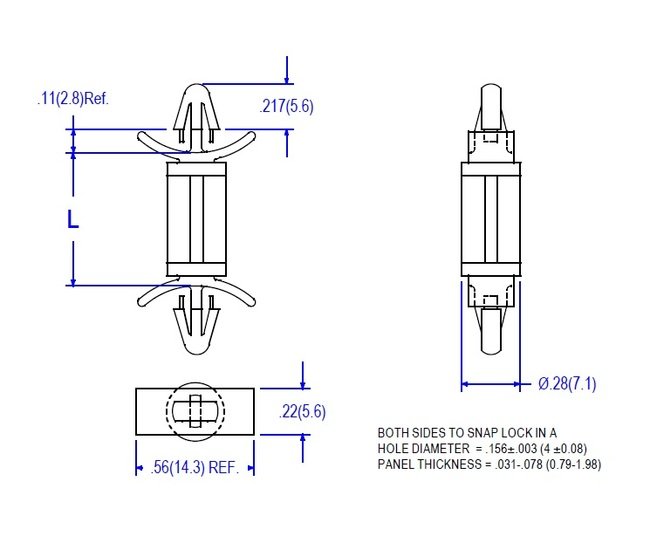

The 05A Series Circuit Board Supports are designed for PCBs with thickness ranging from .031 to .078, fitting securely into .156 board and chassis holes. Each pack contains 1000 supports made of durable Nylon 66 UL94V-2 material, with the option for UL94V-0 variant by adding 'X' to the part number. These supports meet ASTM D 4066, PA111 standards and are RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), this product ensures reliable performance in varied environments.
Product Specifications
Specifications Dim L
.625 (15.9) inches (mm)
