05A Series Nylon Circuit Board Supports
05A Series Nylon Circuit Board Supports
SKU:01C-c3d35b
Securely mount PCBs with these durable, RoHS compliant circuit board supports. Pack of 1000.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
05A Series Nylon Circuit Board Supports
$39.99
Quantity: 1
Claim Your Seller Account
05A Series Nylon Circuit Board Supports
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

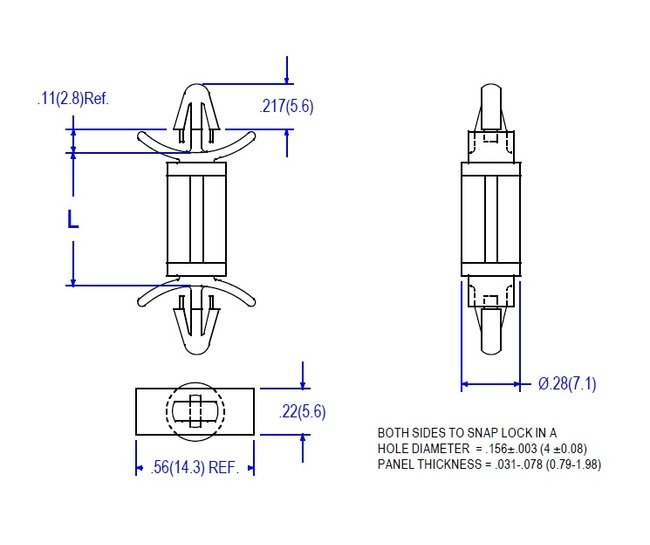

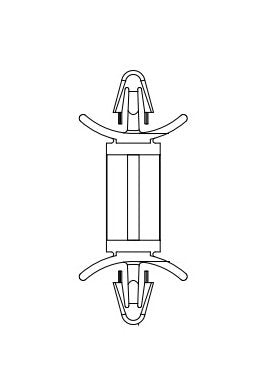

The 05A Series: .156 Board Hole x .156 Chassis Hole Circuit Board Supports are designed for secure mounting of PCBs with a thickness ranging from .031 to .078 onto chassis. Each pack contains 1000 supports made of Nylon 66 UL94V-2 material (UL94V-0 available by adding 'X' to the part number). These supports meet ASTM D 4066, PA111 standards, are RoHS compliant, and have a temperature range of -40 to 185F (-40 to 85C), ensuring durability in various operating conditions.
Product Specifications
Specifications Dim L
.500 (12.7) inches (mm)
