05A Series PCB Circuit Board Support (.031-.078 Thick Chassis)
05A Series PCB Circuit Board Support (.031-.078 Thick Chassis)
SKU:01C-8d117e
High-quality Nylon 66 PCB Circuit Board Support for .031-.078 thick chassis, pack of 1000 units, ASTM D 4066, RoHS Compliant
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
05A Series PCB Circuit Board Support (.031-.078 Thick Chassis)
$59.99
Quantity: 1
Claim Your Seller Account
05A Series PCB Circuit Board Support (.031-.078 Thick Chassis)
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 05A Series PCB Circuit Board Support is designed for use with chassis ranging from .031 to .078 inches thick. Each support is precision-engineered using Nylon 66 UL94V-2 material for exceptional durability and reliability. This product comes in a pack of 1000 units, meeting ASTM D 4066 and PA111 standards, ensuring high performance in a wide temperature range from -40 to 185F (-40 to 85C). Upgrade to UL94V-0 material by adding 'X' to the part number for enhanced safety. Ideal for securing circuit boards in place and enhancing overall system stability.
Product Specifications

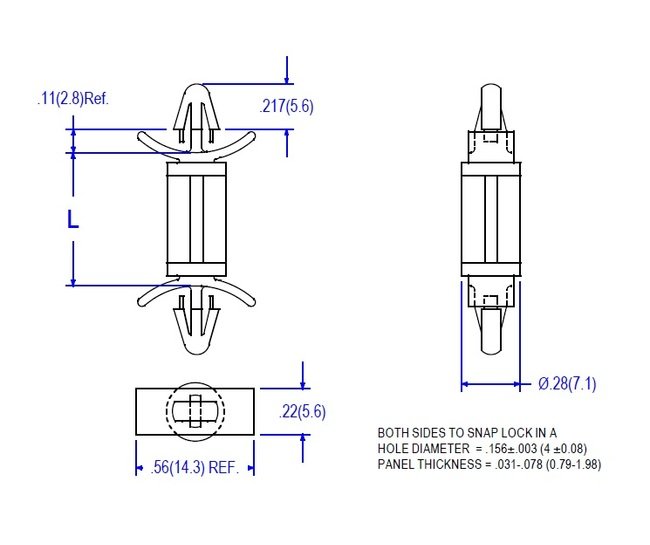

Specifications Dim L
.187 (4.8) inches (mm)
