06 Series PCB Support - .157 Board Hole x .217 Chassis Hole

Name: 06 Series PCB Support - .157 Board Hole x .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-4ea0bf
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-4ea0bf

Precisely engineered 06 Series PCB Support for .157 board hole and .217 chassis hole, offering secure yet releasable installation with RoHS compliance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

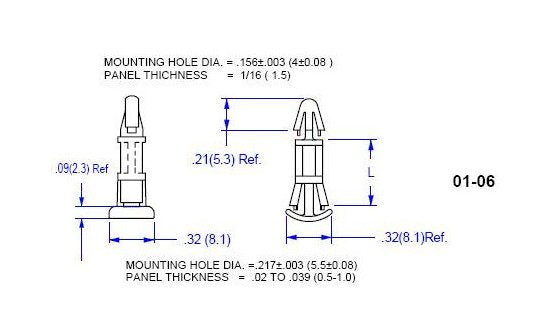

The 06 Series PCB Support is designed for a precise fit with a .157 board hole and .217 chassis hole, ensuring optimal support for circuit boards. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support accommodates chassis thickness ranging from .020 to .039 inches. Easy to install by inserting from the chassis underside, it provides minimal board protrusion while securely locking in place, yet remains easily releasable by hand. This pack of 500 supports meets ASTM D 4066, PA111 standards and is RoHS compliant, offering a temperature range of -40 to 185F (-40 to 85C) for versatile use in various applications.

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.020 - .039 (0.5 - 1.0) inches (mm)

Specifications Color

White

Specifications Dim L 015

.197 (5.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0

06 Series PCB Support - .157 Board Hole x .217 Chassis Hole
