07 Series Circuit Board Support: .157 Board Hole x .217 Chassis Hole

Name: 07 Series Circuit Board Support: .157 Board Hole x .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-0072be
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-0072be

Improve electronic assembly stability with the 07 Series Circuit Board Support. Easy to install, secure locking, and RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance stability and reliability in your electronic assemblies with the 07 Series Circuit Board Support. Designed for a chassis thickness range of .047-.079 inches, this reverse PCB support features easy installation from the underside, minimal board protrusion, and secure yet hand-releasable locking. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), this support is RoHS compliant and meets ASTM D 4066, PA111 standards. With a temperature range of -40 to 185F, it ensures durability in various environments.

Product Specifications

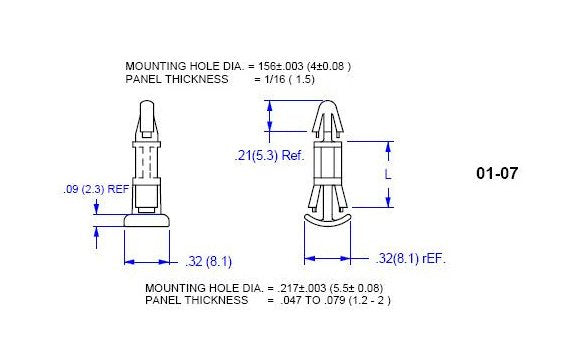

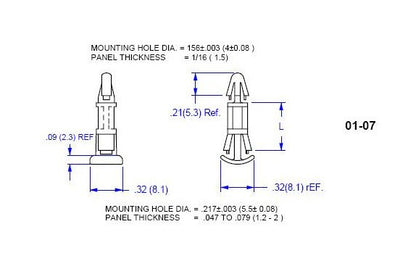

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L 015

.551 (14.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

07 Series Circuit Board Support: .157 Board Hole x .217 Chassis Hole
