07 Series Nylon PCB Support for .157 Board Hole x .217 Chassis Hole

Name: 07 Series Nylon PCB Support for .157 Board Hole x .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-d2e3fd
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-d2e3fd

Secure & Reliable Nylon PCB Support for .157 Board Hole x .217 Chassis Hole, ASTM D 4066 Compliant

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

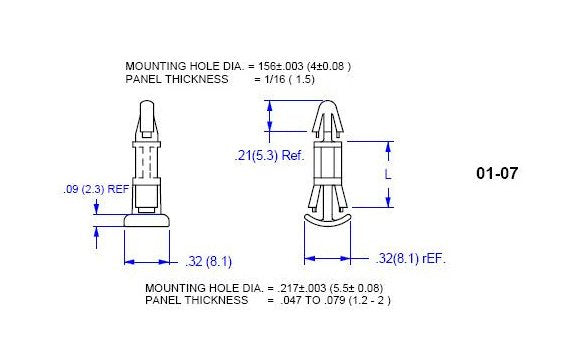

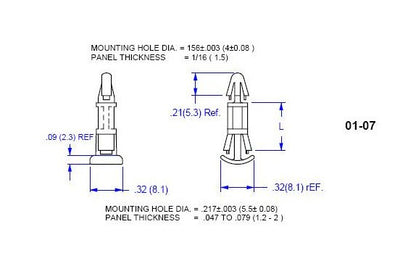

The 07 Series Nylon PCB Support is designed for precise support in circuit board applications, featuring a reverse design for easy installation from the chassis underside. With a chassis thickness range of .047-.079 inches, this support ensures minimal board protrusion and provides secure locking while remaining easily releasable by hand. Made of Nylon 66 UL94V-2 material (UL94V-0 option available), this product meets ASTM D 4066, PA111 standards, is RoHS compliant, and offers a temperature range of -40 to 185F (-40 to 85C). Enhance your circuit board setups with reliability and compliance.

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L 015

.709 (18.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2
