07 Series Nylon PCB Support for Chassis with .157 Board Hole x .217 Chassis Hole

Name: 07 Series Nylon PCB Support for Chassis with .157 Board Hole x .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-f14d5c
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-f14d5c

Securely mount PCBs in chassis with 07 Series Nylon PCB Support - .157 Board Hole x .217 Chassis Hole. Easy installation, secure locking, and RoHS compliance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

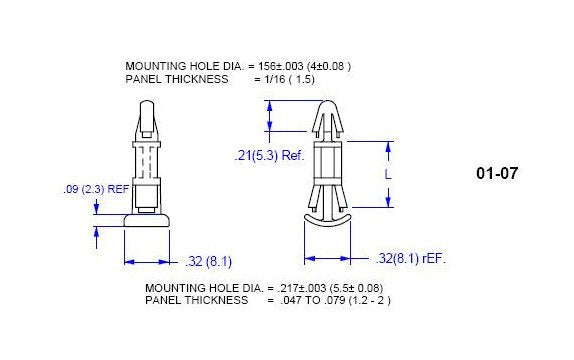

The 07 Series Nylon PCB Support is designed for secure mounting of circuit boards within a chassis, with a .157 board hole and .217 chassis hole configuration. Made from Nylon 66 UL94V-2 material (UL94V-0 available upon request), this support ensures minimal board protrusion while offering easy installation from the chassis underside. It securely locks the PCB in place, yet remains easily releasable by hand. With a chassis thickness range of .047-.079 inches, this support meets ASTM D 4066, PA111 and RoHS compliance, making it ideal for a temperature range of -40 to 185°F (-40 to 85°C). Packaged in quantities of 500 per bag, these supports are a reliable choice for your circuit board mounting needs.

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L 015

.394 (10.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

07 Series Nylon PCB Support for Chassis with .157 Board Hole x .217 Chassis Hole
