07 Series Nylon PCB Support with Chassis Lock, .157 Board Hole x .217 Chassis Hole

Name: 07 Series Nylon PCB Support with Chassis Lock, .157 Board Hole x .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-f8d5ea
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-f8d5ea

Secure and easy-to-install Nylon PCB support with chassis lock for precise board positioning. RoHS compliant and temperature-resistant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 07 Series Nylon PCB Support with Chassis Lock is designed for precision in securing circuit boards within a chassis. With a chassis thickness range of .047-.079 inches, this support offers easy installation by inserting from the underside, ensuring minimal board protrusion. Its secure locking mechanism can be easily released by hand. Crafted from Nylon 66 UL94V-2 material, this support is RoHS compliant and can withstand temperatures ranging from -40 to 185F. For enhanced safety, UL94V-0 material variant is available upon request.

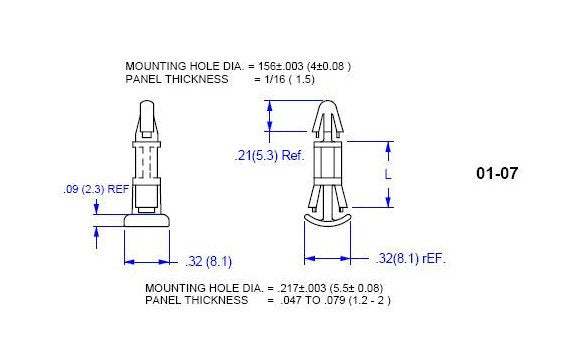

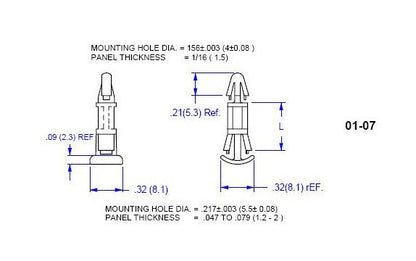

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L 015

.394 (10.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0

07 Series Nylon PCB Support with Chassis Lock, .157 Board Hole x .217 Chassis Hole
