07 Series PCB Support - .157 Board Hole x .217 Chassis Hole
07 Series PCB Support - .157 Board Hole x .217 Chassis Hole
SKU:01C-b72bf5
Securely hold circuit boards with precision using the 07 Series PCB Support. Easy to install and release, with durable Nylon 66 construction. Temperature resistant from -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
07 Series PCB Support - .157 Board Hole x .217 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
07 Series PCB Support - .157 Board Hole x .217 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 07 Series PCB Support is designed to securely hold circuit boards with a board hole size of .157 inches and chassis hole size of .217 inches within a chassis thickness range of .047 to .079 inches. Made of durable Nylon 66 UL94V-2 material (UL94V-0 available), this reverse PCB support ensures minimal board protrusion while locking securely in place. It offers easy installation from the chassis underside and can be easily released by hand. This support is temperature resistant from -40 to 185F (-40 to 85C), making it suitable for a wide range of applications.
Product Specifications
Specifications Board Thickness
.063 (1.6) inches (mm)
Specifications Chassis Thickness
.047 - .079 (1.2 - 2.0) inches (mm)
Specifications Dim L 015
.236 (6.0) inches (mm)

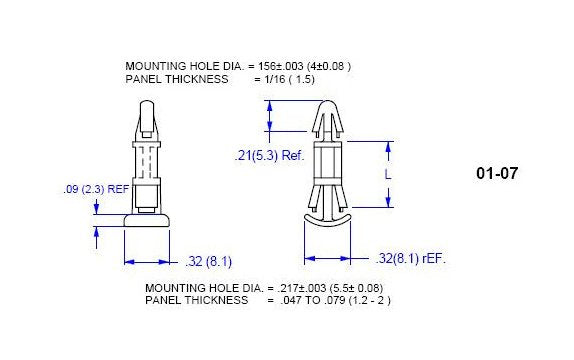

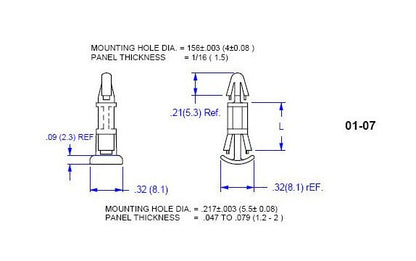

Specifications Fig No
2
Specifications Material Code
UL94V-0
