07 Series PCB Support: .157 Board Hole x .217 Chassis Hole

Name: 07 Series PCB Support: .157 Board Hole x .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-20e8ca
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-20e8ca

07 Series PCB Support for secure and easy installation. RoHS compliant, temperature-resistant, and ASTM D 4066, PA111 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

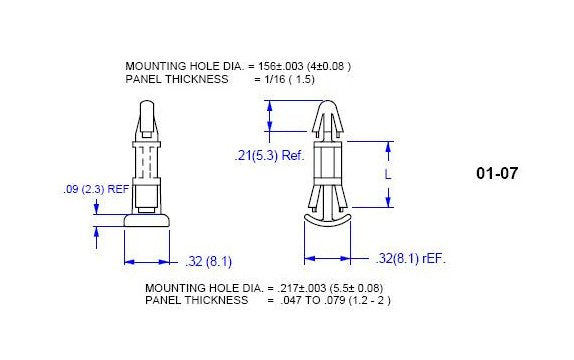

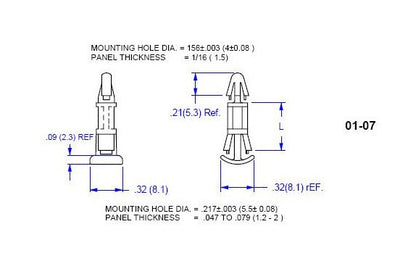

The 07 Series PCB Support with .157 Board Hole and .217 Chassis Hole is designed for optimal support in circuit board applications. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available upon request), this support ensures secure installation and minimal board protrusion. With a chassis thickness range of .047-.079 inches, it offers reliable support that locks securely yet is easily releasable by hand. This black support is RoHS compliant, meets ASTM D 4066, PA111 standards, and has a temperature range of -40 to 185F (-40 to 85C). Ideal for various institutional and industrial applications.

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L 015

.236 (6.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2
