07 Series PCB Support - .157 Board Hole x .217 Chassis Hole
07 Series PCB Support - .157 Board Hole x .217 Chassis Hole
SKU:01C-5560ee
Securely support PCBs with the 07 Series PCB Support - Perfect for chassis thickness .047-.079 inches, ASTM D 4066 & RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
07 Series PCB Support - .157 Board Hole x .217 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
07 Series PCB Support - .157 Board Hole x .217 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 07 Series PCB Support is designed for easy installation with a chassis thickness range of .047-.079 inches. Featuring a minimal board protrusion, it securely locks in place yet can be easily released by hand. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is ASTM D 4066, PA111, and RoHS compliant. With a temperature range of -40 to 185F, it meets the most stringent industry standards for reliability and durability.
Product Specifications
Specifications Board Thickness
.063 (1.6) inches (mm)
Specifications Chassis Thickness
.047 - .079 (1.2 - 2.0) inches (mm)
Specifications Dim L 015
.709 (18.0) inches (mm)

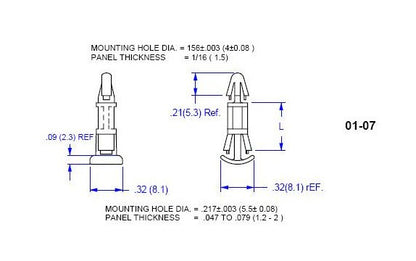

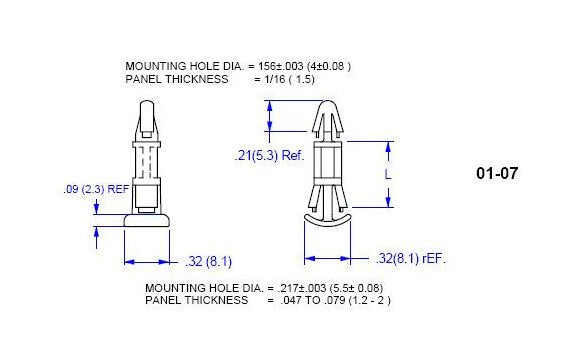

Specifications Fig No
1
Specifications Material Code
UL94V-0
