07 Series: PCB Support .157 Board Hole x .217 Chassis Hole

Name: 07 Series: PCB Support .157 Board Hole x .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-01ce7d
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-01ce7d

Secure and reliable PCB support for circuit boards with minimal protrusion. Easy to install and release. RoHS compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

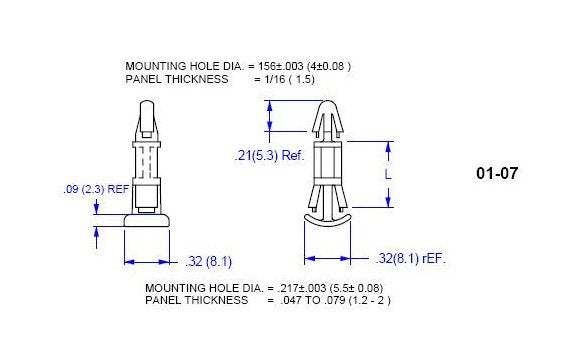

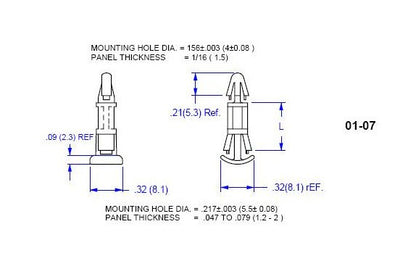

The 07 Series PCB Support with a .157 Board Hole and .217 Chassis Hole is designed for easy installation from the chassis underside, ensuring minimal board protrusion. Its secure locking mechanism is easily releasable by hand, providing a reliable solution for circuit board support. Made of Nylon 66 UL94V-2 material, this support is RoHS compliant and offers a temperature range of -40 to 185F (-40 to 85C). Upgrade to UL94V-0 material by adding an 'X' to the part number.

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L 015

.630 (16.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0

07 Series: PCB Support .157 Board Hole x .217 Chassis Hole
