07 Series PCB Support: .157 Board Hole x .217 Chassis Hole

Name: 07 Series PCB Support: .157 Board Hole x .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-8cfb10
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-8cfb10

Securely support circuit boards with 07 Series PCB Support featuring .157 board hole, .217 chassis hole, & UL94V-2 Nylon material. Easy to install & remove.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

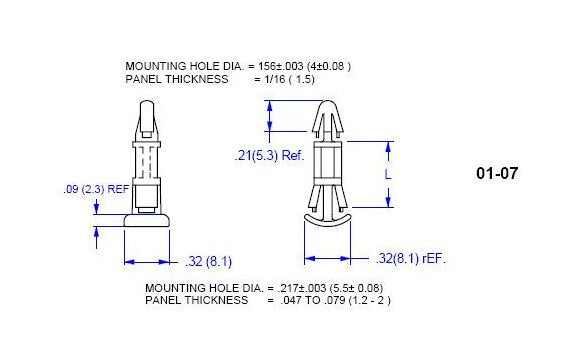

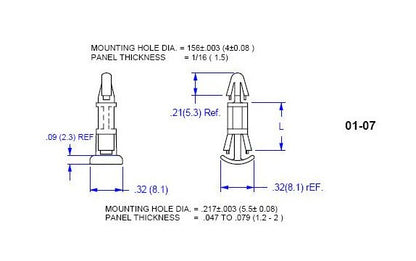

The 07 Series PCB Support features a .157 board hole and .217 chassis hole, providing reliable support for circuit boards within a chassis thickness range of .047-.079 inches. Easy to install by inserting from the chassis underside, it ensures minimal board protrusion while securely locking in place, with easy hand-release functionality. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), this PCB support is UL-certified (UL File No: E53664), RoHS compliant, and meets ASTM D 4066, PA111 standards. With a temperature range of -40 to 185F (-40 to 85C), it offers durability and performance for various applications.

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L 015

.472 (12.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0
