07 Series PCB Support for Chassis - .157 Board Hole x .217 Chassis Hole

Name: 07 Series PCB Support for Chassis - .157 Board Hole x .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-e3e90b
Price: 25.99 USD
Availability: OutOfStock

SKU:01C-e3e90b

Secure and versatile PCB support for circuit boards with .157 Board Hole x .217 Chassis Hole. Compliant with RoHS and ASTM D 4066.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

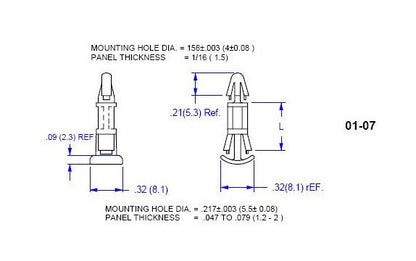

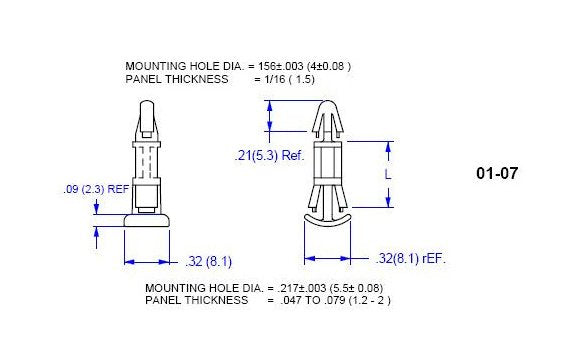

The 07 Series PCB Support is designed to securely hold circuit boards in place with a chassis thickness range of .047-.079 inches. Made of durable Nylon 66 UL94V-2 material (UL94V-0 available), this reverse PCB support allows for easy installation by inserting from the chassis underside. With minimal board protrusion and a locking mechanism that is both secure and easily releasable by hand, this support ensures stability and versatility. Compliant with RoHS regulations and ASTM D 4066, this product offers a temperature range of -40 to 185F (-40 to 85C), making it ideal for a wide range of industrial applications.

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L 015

.320 (8.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0

07 Series PCB Support for Chassis - .157 Board Hole x .217 Chassis Hole
