07 Series PCB Support Kit

Name: 07 Series PCB Support Kit
Brand: All Electronics Hardware
SKU: 01C-4e7727
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-4e7727

Secure and versatile 07 Series PCB Support Kit for .157 board and .217 chassis holes

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

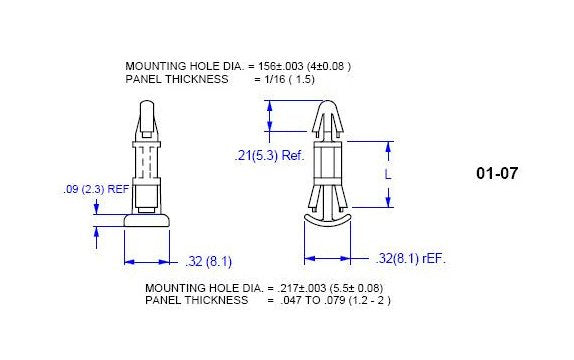

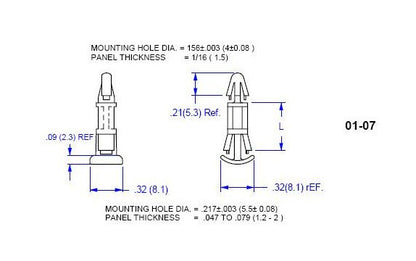

The 07 Series PCB Support Kit is designed for .157 board holes and .217 chassis holes, offering reverse PCB support for chassis with a thickness range of .047-.079 inches. Made of durable Nylon 66 UL94V-2 material, this kit ensures easy installation by inserting from the chassis underside, with minimal board protrusion. Locking securely yet easily releasable by hand, this kit meets ASTM D 4066, PA111, and RoHS standards. It comes in a pack of 500 in black color, with the option to request UL94V-0 material by adding 'X' at the end of the part number. Suitable for temperature ranges of -40 to 185F (-40 to 85C), this support kit ensures reliable performance in various environments.

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L 015

.320 (8.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

07 Series PCB Support Kit
