08 Series Flat Board Support Post with .217 Chassis Hole

Name: 08 Series Flat Board Support Post with .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-de8a7a
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-de8a7a

Securely support circuit boards with the 08 Series Flat Board Support Post. Easy to install, RoHS compliant, and suitable for chassis thickness of 0.020-0.039 inches.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

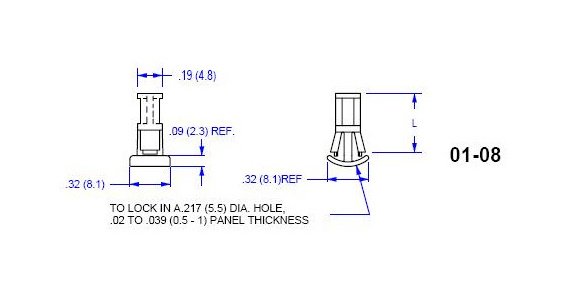

The 08 Series Flat Board Support Post with .217 Chassis Hole is designed for easy installation on chassis with thickness ranging from 0.020 to 0.039 inches. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), it offers a secure yet releasable locking mechanism with minimal protrusion under the chassis. This product is RoHS compliant, meeting ASTM D 4066 and PA0113 standards, ensuring a temperature range of -40 to 185F (-40 to 85C). Ideal for circuit board supports, each pack contains 500 units for convenient usage.

Product Specifications

Specifications Chassis Thickness

.020 - .039 (0.5 - 1.0) inches (mm)

Specifications Color

Natural

Specifications Dim L

.551 (14.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

08 Series Flat Board Support Post with .217 Chassis Hole
