08 Series Flat Board Support with .217 Chassis Hole
08 Series Flat Board Support with .217 Chassis Hole
SKU:01C-21ea5b
Secure, easy-to-install Flat Board Support for .020-.039" chassis thickness. RoHS compliant, Nylon 66 material, temp range -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
08 Series Flat Board Support with .217 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
08 Series Flat Board Support with .217 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

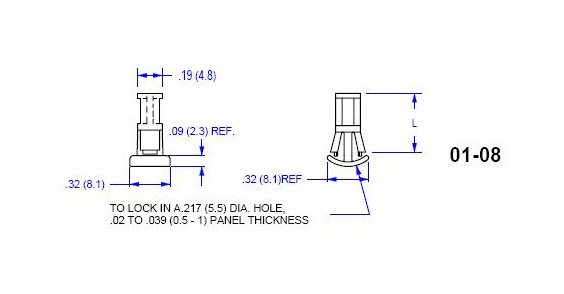

The 08 Series Flat Board Support is designed for easy installation on chassis with a thickness range of .020-.039 inches. It provides secure locking while allowing for easy release when needed, all with minimal protrusion under the chassis. Made of Nylon 66 UL94V-0 material option available, this support is RoHS compliant and can withstand temperatures from -40 to 185F. Each bag contains 500 supports, ensuring efficient stock management. Ideal for circuit board supports in various institutional applications.
Product Specifications
Specifications Chassis Thickness
.020 - .039 (0.5 - 1.0) inches (mm)
Specifications Color
White
Specifications Dim L
.394 (10.0) inches (mm)
Specifications Fig No
1
Specifications Material Code
UL94V-0
