08 Series Flat Board Support with .217 Chassis Hole

Name: 08 Series Flat Board Support with .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-597a8b
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-597a8b

Securely mount circuit boards with ease using the 08 Series Flat Board Support. Made of Nylon 66 UL94V-2, this support is RoHS compliant and offers reliable performance in a wide temperature range.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

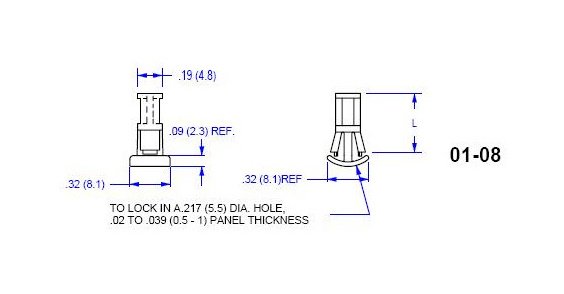

The 08 Series Flat Board Support with .217 Chassis Hole is a versatile solution designed for secure mounting of circuit boards within a chassis. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support post accommodates chassis thickness ranging from .020 to .039 inches. Its easy installation from the underside of the chassis ensures a secure yet releasable lock with minimal protrusion. RoHS compliant and meeting ASTM D 4066 and PA0113 standards, this product offers a temperature range of -40 to 185F (-40 to 85C), ensuring reliable performance under varying conditions.

Product Specifications

Specifications Chassis Thickness

.020 - .039 (0.5 - 1.0) inches (mm)

Specifications Color

Natural

Specifications Dim L

.472 (12.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2
