08 Series Flat Board Support with .217 Chassis Hole
08 Series Flat Board Support with .217 Chassis Hole
SKU:01C-7bfb05
Upgrade circuit board installations with our secure and reliable 08 Series Flat Board Support with .217 Chassis Hole.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
08 Series Flat Board Support with .217 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
08 Series Flat Board Support with .217 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

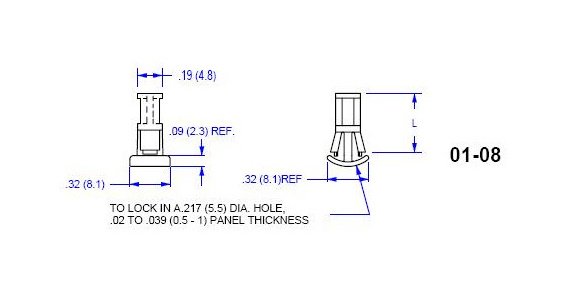

Enhance your circuit board installations with our 08 Series Flat Board Support featuring a .217 Chassis Hole. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support ensures secure yet releasable locking for chassis thickness ranging from .020 to .039 inches. With minimal protrusion under the chassis, it offers easy installation and temperature resistance from -40 to 185F. Each bag contains 500 pieces, meeting ASTM D 4066 and RoHS compliance.
Product Specifications
Specifications Chassis Thickness
.020 - .039 (0.5 - 1.0) inches (mm)
Specifications Color
White
Specifications Dim L
.630 (16.0) inches (mm)
Specifications Fig No
1
Specifications Material Code
UL94V-0
