08 Series Flat Board Support with .217 Chassis Hole

Name: 08 Series Flat Board Support with .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-9904cd
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-9904cd

Secure high-quality PCB installation with 08 Series Flat Board Support. Nylon 66 material, RoHS compliant, ASTM certified, and easy to install.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

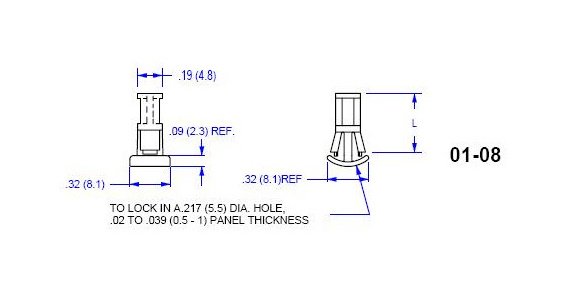

Enhance your PCB installation with the 08 Series Flat Board Support featuring a .217 Chassis Hole. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this post ensures secure locking with easy releasability for chassis thickness ranging from .020 to .039 inches. RoHS compliant and ASTM D 4066, PA0113 certified, it offers a temperature range of -40 to 185F (-40 to 85C). Install easily from the chassis underside, with minimal protrusion and a white color finish for a clean appearance. Each pack contains 500 supports.

Product Specifications

Specifications Chassis Thickness

.020 - .039 (0.5 - 1.0) inches (mm)

Specifications Color

White

Specifications Dim L

.236 (6.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0
