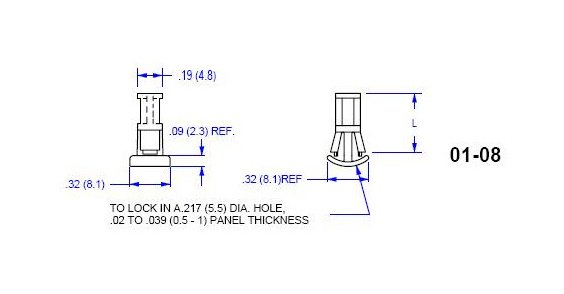

08 Series Flat Board Support with .217 Chassis Hole

Name: 08 Series Flat Board Support with .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-8f759e
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-8f759e

Secure circuit boards with ease! 08 Series Flat Board Support with .217 Chassis Hole ensures a snug fit for various chassis thicknesses, compliant with UL94V-2 standards.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 08 Series Flat Board Support with .217 Chassis Hole is a high-quality and versatile solution for securing circuit boards in a range of chassis thicknesses from .020 to .039 inches. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support post ensures easy installation from the chassis underside while providing secure locking and releasable functionality. With minimal protrusion under the chassis, it offers a seamless fit for various applications. This product is RoHS compliant, ASTM D 4066 and PA0113 certified, and meets stringent industry standards for temperature resistance (-40 to 185°F). Enhance stability and reliability in your electronic systems with these reliable circuit board supports.

Product Specifications

Specifications Chassis Thickness

.020 - .039 (0.5 - 1.0) inches (mm)

Specifications Color

Natural

Specifications Dim L

.236 (6.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

08 Series Flat Board Support with .217 Chassis Hole
