09 Series Circuit Board Supports: Flat Board Support x .217 Chassis Hole

Name: 09 Series Circuit Board Supports: Flat Board Support x .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-e18fa0
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-e18fa0

Secure and durable 09 Series Circuit Board Support for .047-.079in chassis. Easy to install with minimal protrusion. RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

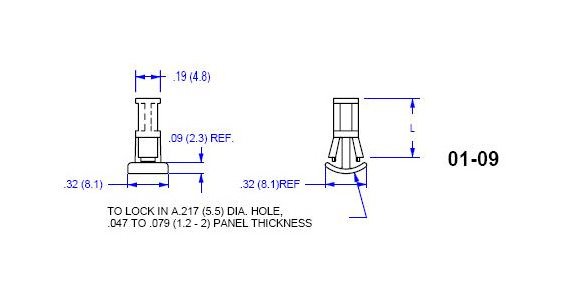

The 09 Series Circuit Board Support is a top-quality reverse PCB post designed for chassis thickness ranging from .047 to .079 inches. Easy to install under the chassis, it ensures secure yet releasable locking with minimal protrusion. Made from Nylon 66 UL94V-2 (UL94V-0 available), this support is RoHS compliant and can withstand temperatures from -40 to 185F (-40 to 85C). With ASTM D 4066 and PA0113 certifications, this support offers durability and reliability for your electronic assemblies.

Product Specifications

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L

.551 (14.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

09 Series Circuit Board Supports: Flat Board Support x .217 Chassis Hole
