09 Series Flat Board Support - .217 Chassis Hole Bracket for Circuit Boards

Name: 09 Series Flat Board Support - .217 Chassis Hole Bracket for Circuit Boards
Brand: All Electronics Hardware
SKU: 01C-b06ef9
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-b06ef9

Secure circuit boards effortlessly with the 09 Series Flat Board Support. Made of Nylon 66 UL94V-2, it offers secure locking for chassis thickness of .047-.079 inches.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

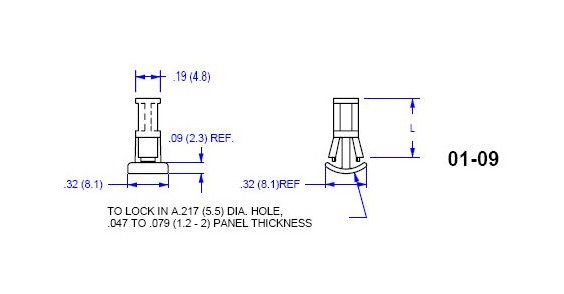

The 09 Series Flat Board Support with a .217 Chassis Hole is a crucial component for securing circuit boards in a variety of applications. Made of high-quality Nylon 66 UL94V-2 material (UL94V-0 available), this support is designed to accommodate chassis thickness ranging from .047 to .079 inches. Its easy installation, secure locking mechanism, and minimal protrusion make it a reliable choice for a range of chassis setups. With RoHS compliance and a temperature range of -40 to 185F (-40 to 85C), this support ensures both performance and safety in diverse environments.

Product Specifications

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L

.472 (12.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0
