09 Series Flat Board Support for .217 Chassis Hole

Name: 09 Series Flat Board Support for .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-12f189
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-12f189

Secure flat board support for PCB installation, nylon material, RoHS compliant, temperature range -40 to 185F.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

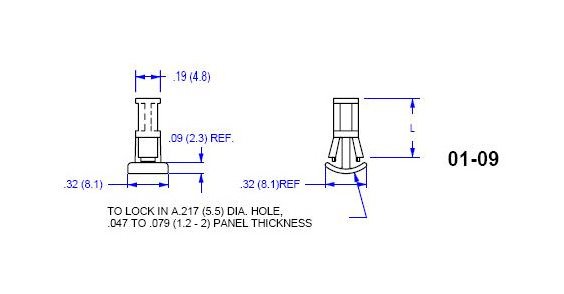

The 09 Series Flat Board Support is a high-quality solution for secure PCB installation in chassis with thickness ranging from .047 to .079 inches. Crafted from Nylon 66 UL94V-2 material, this support offers easy installation from the chassis underside, ensuring a secure yet releasable lock mechanism. With minimal protrusion under the chassis, it maintains a sleek appearance. This product is RoHS compliant, withstands temperatures from -40 to 185F, and can be optionally ordered with UL94V-0 material for enhanced performance.

Product Specifications

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L

.394 (10.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2
