09 Series Flat Board Support for .217 Chassis Hole - Nylon UL94V-0
09 Series Flat Board Support for .217 Chassis Hole - Nylon UL94V-0
SKU:01C-2a2537
Secure and durable 09 Series Flat Board Support for .217 Chassis Hole meets RoHS and ASTM standards. Easy to install with minimal protrusion under chassis.
Regular price
$27.99
Regular price
Sale price
$27.99
Unit price
per
Initiate Order
09 Series Flat Board Support for .217 Chassis Hole - Nylon UL94V-0
$27.99
Quantity: 1
Claim Your Seller Account
09 Series Flat Board Support for .217 Chassis Hole - Nylon UL94V-0
$27.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

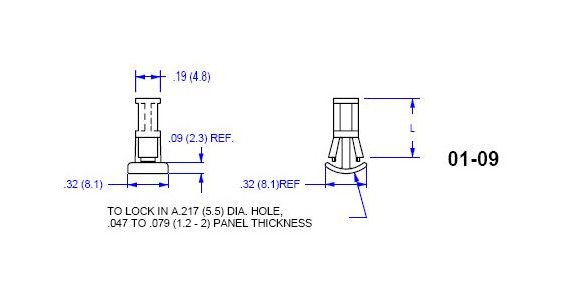

The 09 Series Flat Board Support is designed for secure and easy installation on chassis with a thickness range of .047-.079 inches. Made of Nylon 66 UL94V-0 material, this component ensures minimal protrusion under the chassis while providing reliable support. With a temperature range of -40 to 185F, it offers durability and performance in various environments. Compliant with RoHS standards, ASTM D 4066, and PA0113, this support meets the highest industry requirements, making it an ideal choice for critical applications.
Product Specifications
Specifications Chassis Thickness
.047 - .079 (1.2 - 2.0) inches (mm)
Specifications Dim L
.236 (6.0) inches (mm)
Specifications Fig No
2
Specifications Material Code
UL94V-0
