09 Series Flat Board Support with .217 Chassis Hole
09 Series Flat Board Support with .217 Chassis Hole
SKU:01C-6681e6
Durable 09 Series Flat Board Support with .217 Chassis Hole for secure PCB installation in a temperature range of -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
09 Series Flat Board Support with .217 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
09 Series Flat Board Support with .217 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

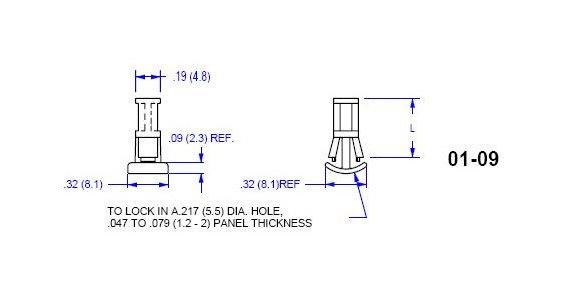

The 09 Series Flat Board Support with .217 Chassis Hole is designed for easy installation on chassis with a thickness range of .047-.079 inches. Made of durable Nylon 66 UL94V-2 material, this support post ensures a secure yet releasable lock with minimal protrusion under the chassis. It complies with UL, ASTM, and RoHS standards, offering a temperature range of -40 to 185F (-40 to 85C). Perfect for circuit board supports, this product comes in a pack of 500 in black color.
Product Specifications
Specifications Chassis Thickness
.047 - .079 (1.2 - 2.0) inches (mm)
Specifications Dim L
.236 (6.0) inches (mm)
Specifications Fig No
2
Specifications Material Code
UL94V-2
