09 Series Flat Board Support with .217 Chassis Hole

Name: 09 Series Flat Board Support with .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-d14217
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-d14217

Premium 09 Series Flat Board Support for .047-.079in chassis. Secure, easy to install Nylon post, RoHS compliant, ASTM certified, -40 to 185°F range.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

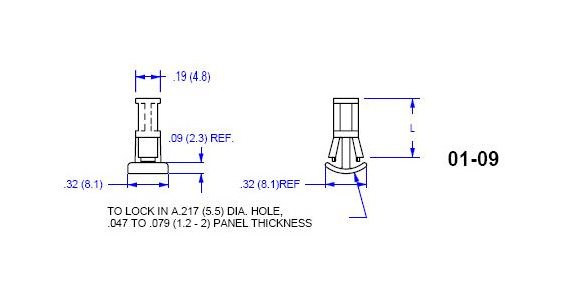

The 09 Series Flat Board Support with .217 Chassis Hole is a premium support solution designed for circuit boards with a chassis thickness range of .047-.079 inches. Made of high-quality Nylon 66 UL94V-2 material, this support post ensures secure installation with minimal protrusion under the chassis. It offers easy installation from the underside of the chassis and can be released effortlessly when needed. This RoHS compliant support post is ASTM D4066, PA0113 certified, and meets stringent industry standards for reliability and durability. With a temperature range of -40 to 185°F (-40 to 85°C), it guarantees optimal performance in diverse environments.

Product Specifications

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L

.320 (8.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2
