09 Series Flat Board Support x .217 Chassis Hole - Circuit Board Support Post

Name: 09 Series Flat Board Support x .217 Chassis Hole - Circuit Board Support Post
Brand: All Electronics Hardware
SKU: 01C-eda12e
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-eda12e

Secure circuit boards effectively with the 09 Series Flat Board Support for varying chassis thicknesses. Easy to install, durable Nylon material, and ASTM, PA0113, RoHS compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

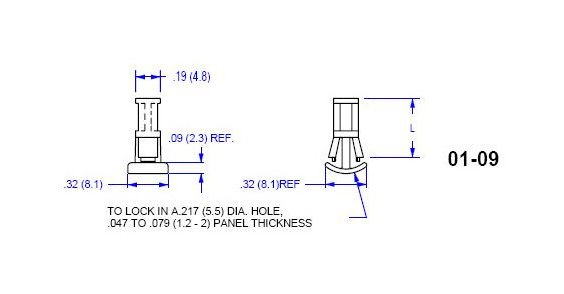

The 09 Series Flat Board Support x .217 Chassis Hole is a versatile solution for securing circuit boards in a range of chassis thicknesses from .047 to .079 inches. Crafted from durable Nylon 66 UL94V-2 material (UL94V-0 available), this support post offers easy installation by inserting from the chassis underside, ensuring a secure yet releasable lock. With minimal protrusion under the chassis, it provides a sleek finish in black color. This product complies with ASTM D 4066, PA0113, RoHS standards, and operates within a temperature range of -40 to 185F (-40 to 85C), making it ideal for various industrial applications.

Product Specifications

Specifications Chassis Thickness

.047 - .079 (1.2 - 2.0) inches (mm)

Specifications Dim L

.630 (16.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

09 Series Flat Board Support x .217 Chassis Hole - Circuit Board Support Post
