09 Series: Flat Board Support x .217 Chassis Hole - UL94V-0 Nylon Post
09 Series: Flat Board Support x .217 Chassis Hole - UL94V-0 Nylon Post
SKU:01C-70e009
Durable and compliant PCB post for chassis thickness .047-.079in, Nylon 66 UL94V-0 material, ASTM & UL certified
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
09 Series: Flat Board Support x .217 Chassis Hole - UL94V-0 Nylon Post
$24.99
Quantity: 1
Claim Your Seller Account
09 Series: Flat Board Support x .217 Chassis Hole - UL94V-0 Nylon Post
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

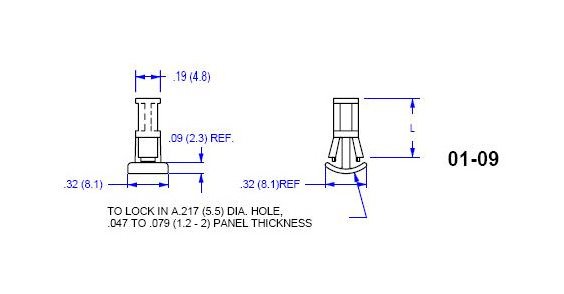

The 09 Series Flat Board Support x .217 Chassis Hole is a high-quality PCB post designed for chassis thickness ranging from .047 to .079 inches. Made of Nylon 66 UL94V-0 material (UL94V-2 available), this support post ensures easy installation by inserting from the chassis underside, securely locking in place with minimal protrusion. It is RoHS compliant and can withstand temperatures from -40 to 185F. With ASTM and UL certifications, this support post is a reliable choice for various institutional applications.
Product Specifications
Specifications Chassis Thickness
.047 - .079 (1.2 - 2.0) inches (mm)
Specifications Dim L
.551 (14.0) inches (mm)
Specifications Fig No
1
Specifications Material Code
UL94V-0
