1.09 Specific Gravity Polyolefin/Carbon Nanotube Composite
1.09 Specific Gravity Polyolefin/Carbon Nanotube Composite
SKU:POL-18aca8
Discover the exceptional 1.09 Specific Gravity Polyolefin/Nanotube Composite for superior electrical properties and unmatched performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
1.09 Specific Gravity Polyolefin/Carbon Nanotube Composite
$29.99
Quantity: 1
Claim Your Seller Account
1.09 Specific Gravity Polyolefin/Carbon Nanotube Composite
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1.09 Specific Gravity Polyolefin/Carbon Nanotube Composite is a cutting-edge material engineered for excellence in various industries. With a unique composition featuring Carbon Nanotubes, this composite offers superior electrical properties, enhanced thermal stability, and exceptional strength. Compliant with ASTM standards, this composite is ideal for applications requiring precise specific gravity, high tensile strength, and excellent flexural modulus. From electronic parts trays to conductive coatings, this composite delivers unmatched performance and reliability.
Product Specifications
Additional Information

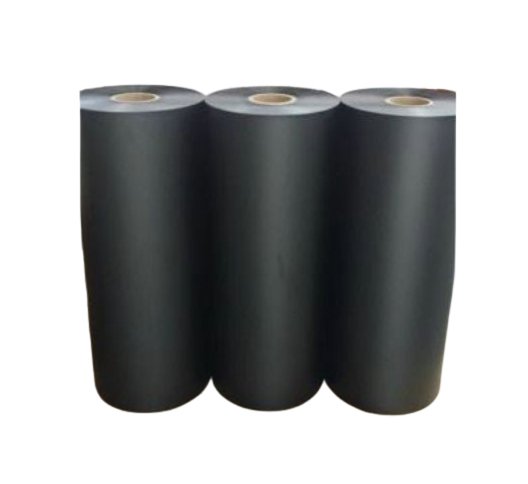

Polyolefin/CNT composites can be processed into sheets films, and foams with superior electrical properties.In case of films for agricultural mulching filed, the specific functions such as the increase of soil temperature or suppress of weeds can be expected.CNT is known as having excellent electrical conductivity, thermal conductivity, strength, and thermal stability. Demand for Li-ion Battery as positive electrode conductive additives has been increasing and CNT is also being used in applications such as tire treads and antistatic resins.Kumho's CNT have a highly oriented bundle structure and have been used by major battery manufacturers and tire manufacturers globally. Multiple grades of CNT are available depending on required property and each application, and we also have various types of rubber and resin compound and masterbatches.Kumho Petrochemical with one of the world's largest synthetic rubber manufacturing capacities was established in 1970 and developing their business in several fields including synthetic resins, specialty chemicals, nanocarbons, energy, and building materials.Major application with Kumho's CNTLi-ion Battery as positive electrode conductive additives for automotiveTire treadsElectronic Parts TraysConductive coatingElectro-Magnetic Interference (EMI) Shielding CompositeConductive resin/rubber
Applications Applications
Sheets | Thermoformed Trays
Applications Surface Resistance
104~106 Ω/sq.
Properties Flexural Modulus 10 Millimeter Mm Per Minute
10,300 kgf/cm²
Properties Flexural Strength 10 Millimeter Mm Per Minute
200 kgf/cm²
Properties Heat Deflection Temperature 46 Kilogram Kgsqu
82 ºC
Properties Izod Impact Notched 32 Millimeter Mm
60 kgf·cm/cm
Properties Melt Flow Index 200 Degree Celsius C Temperat
6.9
Properties Specific Gravity
1.09
Properties Surface Resistivity At 23 Degree Celsius C Te
3~4 E+Ω/sq
Properties Tensile Elongation At Break 50 Millimeter Mm
20 %
Properties Tensile Strength 50 Millimeter Mm Per Minute
170 kgf/cm²
Properties Test Method For Flexural Modulus 10 Millimete
American Society for Testing and Materials (ASTM) D790
Properties Test Method For Flexural Strength 10 Millimet
American Society for Testing and Materials (ASTM) D790
Properties Test Method For Heat Deflection Temperature 4
American Society for Testing and Materials (ASTM) D648
Properties Test Method For Izod Impact Notched 32 Millim
American Society for Testing and Materials (ASTM) D256
Properties Test Method For Melt Flow Index 200 Degree Ce
American Society for Testing and Materials (ASTM) D1238
Properties Test Method For Specific Gravity
American Society for Testing and Materials (ASTM) D792
Properties Test Method For Surface Resistivity At 23 Deg
American Society for Testing and Materials (ASTM) D257
Properties Test Method For Tensile Elongation At Break 5
American Society for Testing and Materials (ASTM) D638
Properties Test Method For Tensile Strength 50 Millimete
American Society for Testing and Materials (ASTM) D638
