1 1/2" BSP PWR-FLO™ AODD Pump with Santoprene® Diaphragm

1 1/2" BSP PWR-FLO™ AODD Pump with Santoprene® Diaphragm

MAN-aa3b5d

Versatile 1 1/2" BSP PWR-FLO™ AODD Pump with Santoprene® Diaphragm - ideal for industrial liquid transfer applications.

$599.99
$599.99
Sale

Initiate Order

1 1/2" BSP PWR-FLO™ AODD Pump with Santoprene® Diaphragm

1 1/2" BSP PWR-FLO™ AODD Pump with Santoprene® Diaphragm

$599.99

Quantity: 1

Claim Your Seller Account

1 1/2" BSP PWR-FLO™ AODD Pump with Santoprene® Diaphragm

1 1/2" BSP PWR-FLO™ AODD Pump with Santoprene® Diaphragm

$599.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

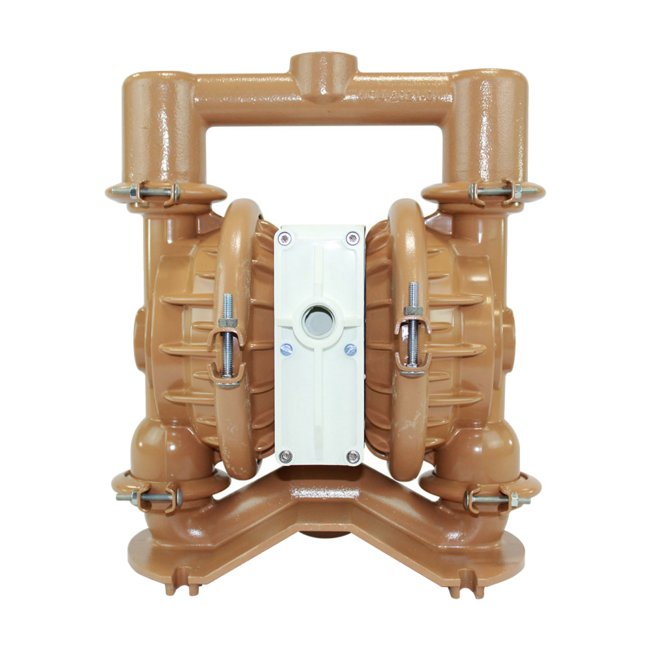

The 1 1/2" BSP PWR-FLO™ AODD Pump, made of durable Ductile Iron with Santoprene® Diaphragm, is a versatile solution for both consumer and institutional buyers. This air-driven double diaphragm pump is a drop-in replacement for Wilden® AODD pumps, offering efficient air systems and excellent reliability in liquid transfer applications. With a 0.26 gal displacement per cycle, handling large solids up to 0.1875 inches, and a max flow rate of 76 gpm, this pump ensures performance and durability. Ideal for filling, batching, and handling slurries, it meets rigorous standards for industrial usage.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0

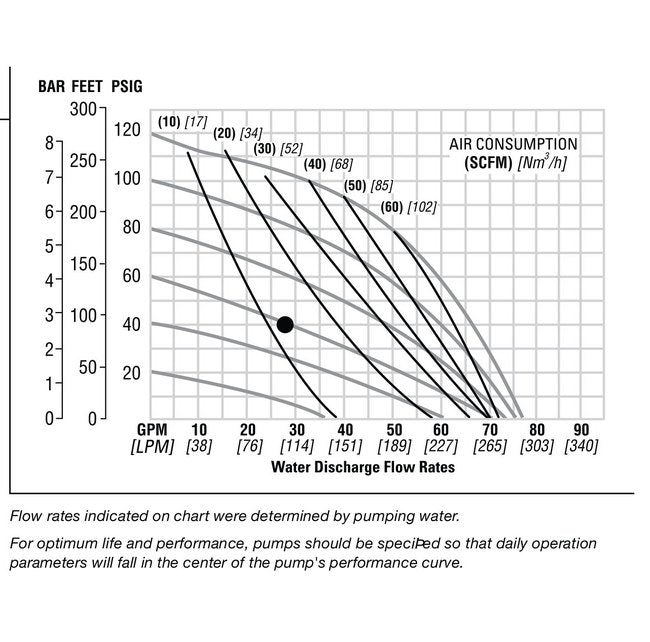

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO™ asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Santoprene®
Specifications Check Valve Seat
Santoprene
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Santoprene® - UFI
Specifications Displacement Per Cycle
0.26 gal | 0.98 lit
Specifications Elastomers
Santoprene, Santoprene®, Santoprene®
Specifications Fluid Inlet Size
1.5 BSP in | 38 BSP mm
Specifications Fluid Outlet Size
1.5 BSP in | 38 BSP mm
Specifications Height
17 Inch | 17 in | 429.26 mm
Specifications Length
17 Inch | 17 in | 0.4293 m | 429.26 mm
Specifications Max Flow Rate
76 gpm | 287.69 lpm
Specifications Moc
Ductile Iron
Specifications Model
NPF40/WAAA/SNF/SN/SN/B/C/X
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
40-211463
Specifications Solids Handling
0.1875 in | 5 mm
Specifications Wetted Moc
Ductile Iron
Specifications Width
12 Inch | 12 in | 0.3073 m | 307.34 mm
