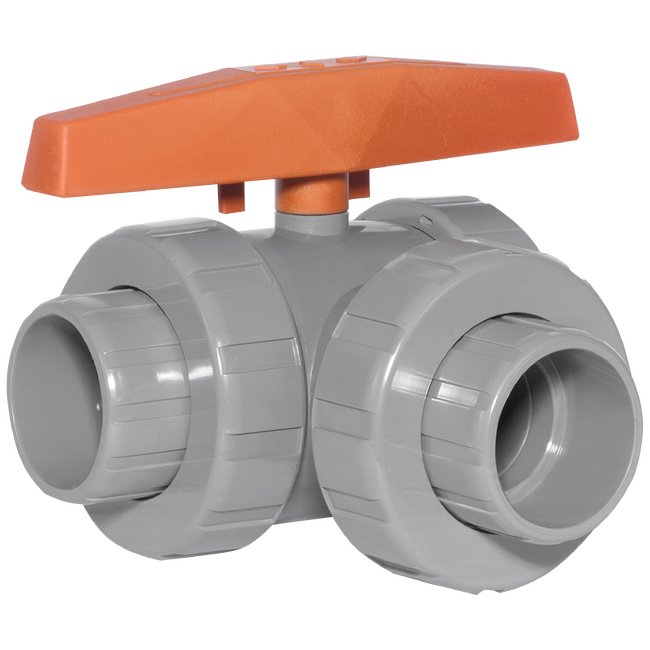

1-1/2" CPVC 3-Way Lateral True Union Ball Valves w/EPDM O-Rings, Flanged End Connections

Name: 1-1/2" CPVC 3-Way Lateral True Union Ball Valves w/EPDM O-Rings, Flanged End Connections
Brand: Hayward Flow Control
SKU: TRU-2d43d3
Price: 69.99 USD
Availability: OutOfStock

SKU:TRU-2d43d3

Versatile 1-1/2" CPVC 3-way lateral true union ball valve for precise flow control, EPDM o-rings, and flanged connections.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1-1/2" CPVC 3-way lateral true union ball valve with EPDM o-rings and flanged end connections from our LA Series is designed for precise flow control in demanding industrial applications. This valve allows flow diversion from the center port to the left or right ports, eliminating the need for an OFF position. Built with high-quality CPVC, EPDM seals, and flanged connections, this valve ensures reliable performance. With a Cv factor of 30, this valve is rated up to 150 PSI, meeting stringent industry standards for durability and efficiency. Sizes and dimensions comply with institutional procurement regulations, making it a versatile choice for a wide range of applications.

Product Specifications

Specifications A

4.75 in | 120.65 mm

Specifications B

4.30 in | 109.22 mm

Specifications Body Material

CPVC

Specifications C

5.87 in | 149.10 mm

Specifications Cv Factor

Specifications E

4.00 in | 101.60 mm

Specifications End Connection

Flanged

Specifications F

6.00 in | 152.40 mm

Specifications G

11.85 in | 300.99 mm

Specifications H

4.19 in | 106.43 mm

Specifications Seals

EPDM

Specifications Size

1-1/2"

1-1/2" CPVC 3-Way Lateral True Union Ball Valves w/EPDM O-Rings, Flanged End Connections
