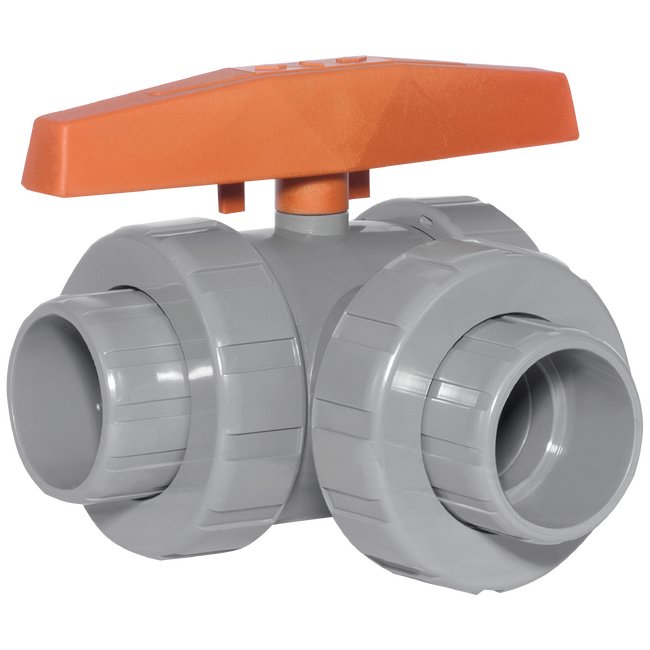

1-1/2" CPVC 3-Way Lateral True Union Ball Valves with FPM Seals
1-1/2" CPVC 3-Way Lateral True Union Ball Valves with FPM Seals
SKU:TRU-08d578
Versatile 3-way flow control with CPVC construction, FPM seals, and socket/threaded connections. Ideal for diverse applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
1-1/2" CPVC 3-Way Lateral True Union Ball Valves with FPM Seals
$45.99
Quantity: 1
Claim Your Seller Account
1-1/2" CPVC 3-Way Lateral True Union Ball Valves with FPM Seals
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1-1/2" CPVC 3-Way Lateral True Union Ball Valves from the LA Series offer versatile flow diversion from the center port to either side without an OFF position. Constructed with durable CPVC and FPM o-rings, these valves are rated @ 150PSI, ensuring reliable performance in various applications. With socket/threaded end connections and precise dimensions, these valves provide a Cv Factor of 30, making them ideal for projects requiring efficiency and corrosion resistance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
4.75 in | 120.65 mm
Specifications B
4.30 in | 109.22 mm
Specifications Body Material
CPVC
Specifications C
5.87 in | 149.10 mm
Specifications Cv Factor
30
Specifications E
4.00 in | 101.60 mm
Specifications End Connection
Socket/Threaded
Specifications F
6.00 in | 152.40 mm
Specifications G
11.85 in | 300.99 mm
Specifications H
4.19 in | 106.43 mm
Specifications Seals
FPM
Specifications Size
1-1/2"
